10kw brine heat pumps solution

10kw brine heat pumps solution


GHP series heat pump use well selected and tested world famous brand components to assure stable and efficient performance.

GHP series heat pump can control a 3 way valve to divert  house heating and producing domestic hot water. Domestic hot water is priority.


GHP series heat pump can work with various Hiseer tanks for domestic hot water production.

GHP series heat pump can work with many kinds of auxiliary heaters such as wood-fired, oil or gas boiler.

Auxiliary heaters could be switched on/off via heat pump signal.

GHP heat pump could be started up via an existing thermostat.

Timer ON/OFF

Varied heat curve. Heat pump heating water temperature will change automatically according to outdoor temp. to let you feel comfortable all the time

Most components are well sealed to retain heat and prevent dripping.

10kw brine heat pumps solution Triple functions:

Heating + domestic hot water

Passive ooling + domestic hot water

Domestic hot water


10kw brine heat pumps solution  Main parts :

Hitachi R410A compressor

High  efficiency Swep/GEA plate heat exchanger

Emerson thermal expansion valve

Saginomiya 4 way valve

Built-in differential pressure flow switch

Seimens controller with remote control, user-friendly interface ,easy to understand and operate.

Good look and long lasting galvanized sheet or stainless steel cabinet

R410A refrigerant is pre-filled inside indoor unit.

Built-in Wilo hot water pump ,three way valve and electric  heater 3/6/9kw is  optional

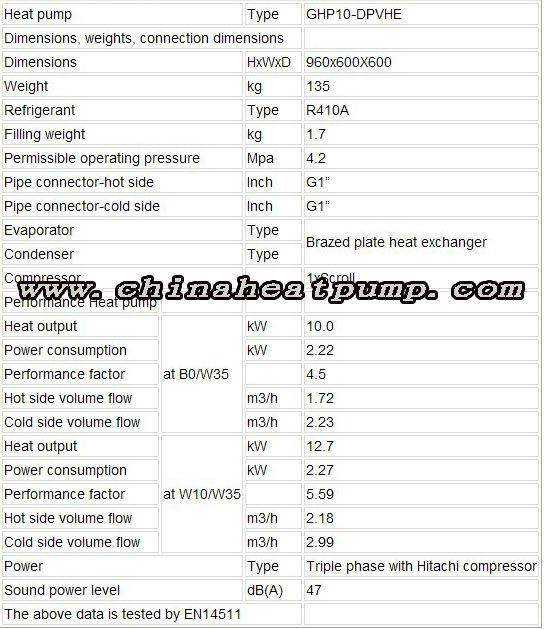

  10kw brine heat pumps solution  technical data :

10kw brine heat pumps solution drawing :

10kw brine heat pumps solution photo :

10kw brine heat pumps solution packaging:

Packing material : plywood
Packing dimension/m:0.66*0.67*1.11
Gross wright/Kg:150

10kw brine heat pumps solution loading:

OEM/ODM custom products are acceptable .

  10kw brine heat pumps solution  factory:

  10kw brine heat pumps solution showroom:

  10kw brine heat pumps solution cutting machine:

  10kw brine heat pumps solution production line:

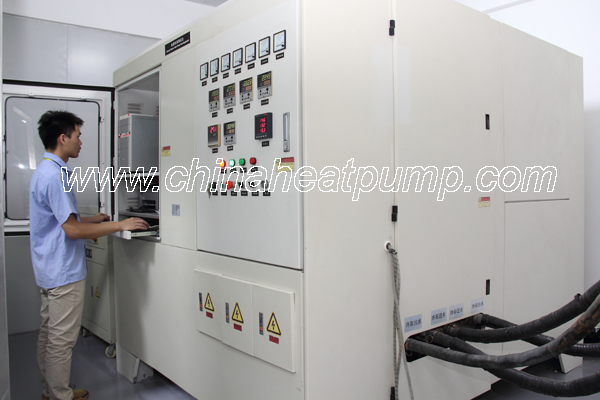

  10kw brine heat pumps solution test:

  10kw brine heat pumps solution shipment testing :

  10kw brine heat pumps solution installation:

  10kw brine heat pumps solution ON LINE system:

  10kw brine heat pumps solution exhibition :

1.Does your heat pump have timer function ?
   Yes , it has ;
2.Could your heat pump provide domestic hot water for shower ?
   Yes , it could;
3.Could your heat pump work with Solar, gas boiler ?
   Yes , It could ;
4.Could we only order 1 heat pump ?
   Yes , you could ;
